Understanding Wheel Alignment

Wheel alignment is a crucial aspect of vehicle maintenance, impacting the longevity of the tires, the vehicle’s fuel efficiency, and the safety of the passengers. Understanding the nuances of wheel alignment can provide significant benefits in terms of cost savings and vehicle performance.

Importance of Wheel Alignment

Proper wheel alignment is essential for maintaining the vehicle’s optimal performance. Misaligned wheels can lead to uneven tire wear, poor fuel economy, and a compromised suspension system, which can affect the vehicle’s overall handling and safety.

Proper alignment reduces the need for rework and improves overall productivity in automotive manufacturing processes. With the correct alignment, the tires wear evenly, prolonging their life and saving costs in the long run. Misalignment can also cause the vehicle to pull to one side, which can be dangerous at high speeds. Therefore, regular wheel alignment checks are a must for any vehicle.

Traditional vs Modern Methods

Traditional methods of alignment can be time-consuming and require manual adjustments, leading to potential errors (Oqton). Technicians would use physical tools and their own judgement to determine the alignment of the wheels. However, this leaves room for human error, and the results can sometimes be inconsistent.

On the other hand, modern methods like 3D imaging alignment and laser alignment take advantage of advancements in technology to provide more accurate and reliable results. For instance, 3D imaging alignment allows automotive manufacturers to quickly and accurately measure and align various components of vehicles, including wheels, axles, and suspension systems.

This modern method involves using a 3D alignment machine that measures the wheel angles of a vehicle and compares them against the original specifications to determine the necessary adjustments. The machine uses image sensors fixed with clamps to calculate the alignment reading of the wheels and sends the captured images to a computer program, which calculates the alignment value and displays the adjustable reading for adjusting the wheels.

The implementation of 3D imaging alignment has resulted in significant time and cost savings for automotive manufacturers, as it eliminates the need for manual measurements and reduces the risk of human error. As we delve further into the advantages of 3d imaging alignment, we will explore the benefits, applications, and future of this innovative technology.

Introduction to 3D Imaging Alignment

As we explore the journey from traditional alignment methods to modern technologies, it’s important to understand the principles and workings of 3D imaging alignment. This ground-breaking technology has revolutionized the world of wheel alignment, offering a plethora of benefits including improved accuracy, time efficiency, and versatility.

Principles of 3D Imaging Alignment

3D imaging alignment is a technological advancement in wheel alignment that assures precision and reliability in the alignment process. According to Oqton, accurate alignment is crucial in automotive 3D scanning to ensure precise measurements and proper fit of components. This accuracy is of paramount importance in maintaining the integrity and performance of a vehicle’s suspension system.

The principle behind 3D imaging alignment is the use of specialized algorithms and computer vision to automatically align scans. This technology eliminates the need for time-consuming manual adjustments that were characteristic of traditional alignment methods and were prone to potential errors.

How 3D Imaging Alignment Works

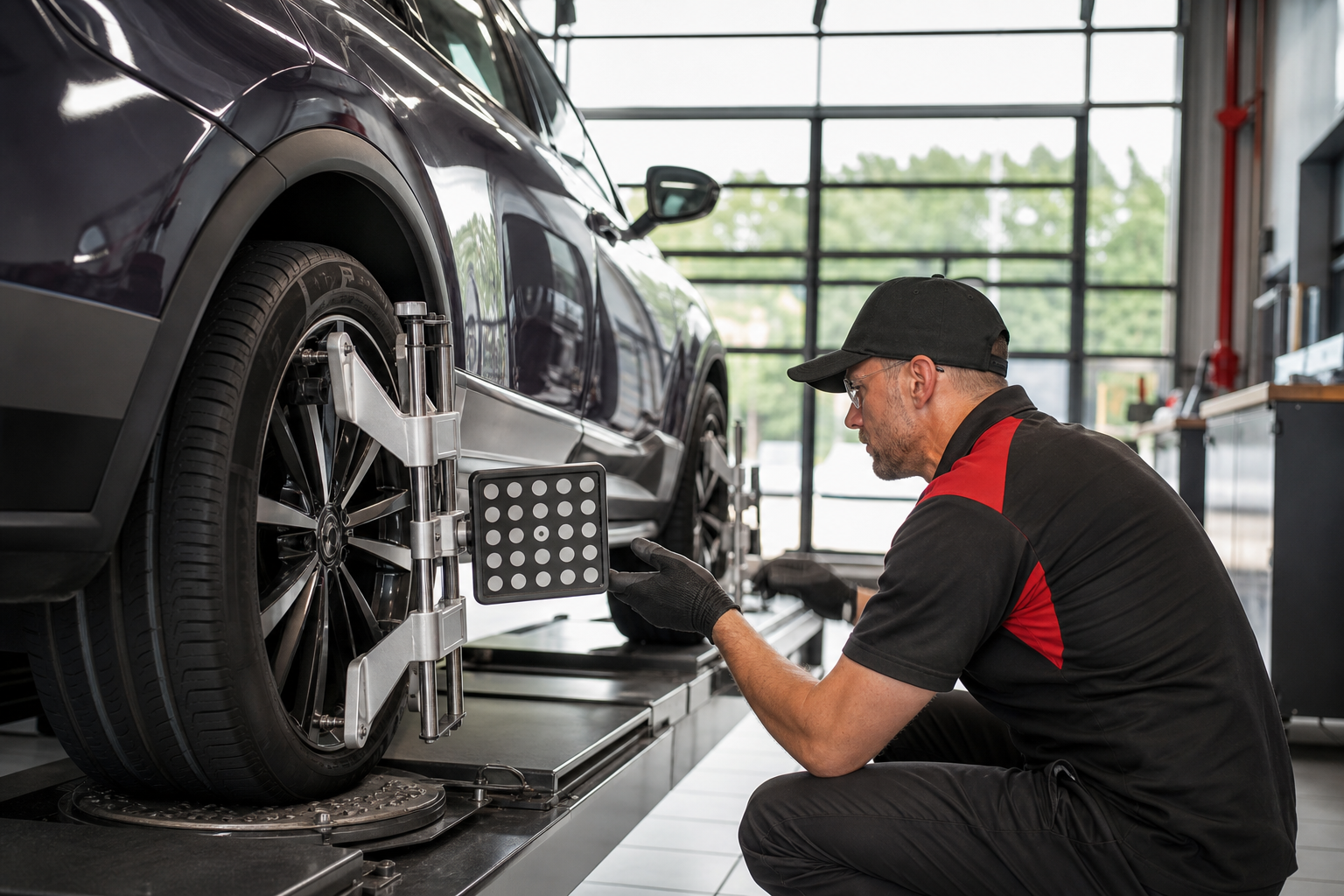

The process of 3D imaging alignment starts with the placement of specialized clamps on each wheel of the vehicle. These clamps are equipped with reflectors or cameras that communicate with the alignment machine. This setup allows the machine to capture continuous pictures of the vehicle’s wheels, creating a 3D image of the alignment status.

These images are then processed by software that uses specialized algorithms to compare the vehicle’s current alignment with the manufacturer’s specifications. The software provides live data to the technicians, who can then make the necessary adjustments for accurate alignment.

The use of 3D imaging alignment technology has helped automotive manufacturers reduce vehicle downtime and increase productivity. It allows for quick and accurate measurement and alignment of various components of vehicles, including wheels, axles, and suspension systems.

The adoption of 3D imaging alignment has elevated the standards of accuracy and precision in the automotive industry, making it a preferred choice for vehicle alignment. As technology continues to advance, 3D imaging alignment will undoubtedly play a vital role in the future of automotive manufacturing and repair services.

Benefits of 3D Imaging Alignment

When it comes to wheel alignment, modern technology like 3D imaging alignment offers a host of advantages over traditional methods. This section delves into the key benefits of 3D imaging alignment, including its accuracy and precision, time and cost efficiency, and versatility in application.

Accuracy and Precision

One of the main advantages of 3D imaging alignment is its superior accuracy and precision. This technology uses specialized algorithms and computer vision to automatically align scans, thereby improving the accuracy and precision of the alignment process.

3D imaging allows for the precise alignment of parts and components during the assembly process, reducing errors and improving overall quality. By using 3D imaging for alignment, automotive manufacturers can reduce waste and optimize the use of materials, leading to cost savings.

Time and Cost Efficiency

The implementation of 3D imaging alignment has resulted in significant time and cost savings for automotive manufacturers. It eliminates the need for manual measurements and reduces the risk of human error (Capture 3D). By integrating 3D imaging alignment into automotive workflows, companies can achieve higher quality control standards and optimize production efficiency.

The use of 3D imaging technology in alignment processes also helps to enhance the efficiency and speed of production in the automotive industry. This results in reduced vehicle downtime and increased productivity.

Versatility in Application

3D imaging alignment technology is versatile and can be used in various stages of the automotive manufacturing process, including assembly, quality control, and maintenance. It can also be integrated with other technologies, such as robotics, to further enhance alignment and accuracy in automotive manufacturing.

The versatility of 3D imaging alignment opens up new possibilities for its application in the automotive industry. Its ability to adapt to different scenarios and tasks makes it a valuable tool for improving efficiency and productivity in the manufacturing process.

In conclusion, 3D imaging alignment stands out for its accuracy, efficiency and versatility, making it a powerful tool in the automotive industry. As technology continues to evolve, the potential for 3D imaging alignment is only set to increase.

Exploring 3D Imaging in Automotive Manufacturing

The use of 3D imaging alignment extends beyond wheel alignment services. It’s quickly becoming a crucial technology in automotive manufacturing, offering a range of advantages over traditional methods. In this section, we’ll explore how it integrates with other technologies and impacts production efficiency in the industry.

Integration with Other Technologies

3D imaging alignment technology can be seamlessly integrated with other technologies such as robotics to further enhance alignment and accuracy in automotive manufacturing.

The fusion of 3D imaging with robotics can provide real-time feedback, allowing for continuous adjustments and corrections during the assembly process. This ensures that each part is placed precisely where it needs to be, leading to a significant reduction in assembly errors.

Such integration not only improves the accuracy and precision of the manufacturing process but also expands the capabilities of the production line. It allows automotive manufacturers to handle a wider range of vehicle models and production scenarios, demonstrating the versatility of 3D imaging alignment.

Impact on Production Efficiency

The use of 3D imaging technology in alignment processes enhances the speed and efficiency of production in the automotive industry. It provides a faster, more reliable method of aligning components than traditional methods, reducing the time taken to assemble each vehicle and increasing the overall output of the production line.

By allowing for precise alignment of parts during the assembly process, 3D imaging alignment also helps to improve the overall quality of the finished product. It reduces errors that can lead to defects or malfunctions in the final vehicle, helping automotive manufacturers to maintain high quality standards and satisfy customer expectations.

Furthermore, 3D imaging alignment can contribute to cost savings in the automotive industry. By reducing waste and optimizing the use of materials, manufacturers can operate more efficiently and sustainably, leading to lower production costs.

In conclusion, 3D imaging alignment is not just transforming wheel alignment services, but also revolutionizing automotive manufacturing. Through integration with other technologies and significant impacts on production efficiency, it offers a promising future in the industry.

3D Imaging Alignment Machines

Various companies are offering 3D imaging alignment machines, each with its unique features and specifications. This article will take a closer look at these machines, their features, and how they operate.

Overview of Available Machines

Leo Alignment is one of the companies leading the way in 3D wheel alignment technology. They offer an extensive range of 3D wheel alignment machines, including models such as Car Alignment Machine LEO© HD1600, Car Alignment Machine Auto L-Track HD908, Car Alignment Machine Manual L-Track HD608, and others.

Each machine model varies slightly in terms of features and capabilities. However, they all share the common objective of providing accurate and efficient wheel alignment for various vehicle types.

Machine Model Manufacturer
Car Alignment Machine LEO© HD1600 Leo Alignment
Car Alignment Machine Auto L-Track HD908 Leo Alignment
Car Alignment Machine Manual L-Track HD608 Leo Alignment
Wheel Alignment Machine ProAlign® 103D Leo Alignment
Wheel Alignment Machines Manual L-Track HD628 Leo Alignment
Wheel Alignment Machine Auto L-Track 803D Leo Alignment
Movable Wheel Alignment Machine ProAlign® M1 Leo Alignment
Movable Wheel Alignmentr Machine Manual L-Track M2 Leo Alignment
Movable Wheel Alignment Machine Auto L-Track M3 Leo Alignment

Features and Specifications

3D wheel alignment machines are equipped with advanced technology designed to measure the wheel angles of a vehicle and compare them against the original specifications. This information is used to determine the necessary adjustments to the camber, caster, and toe of each wheel (ATS ELGI).

The machines use image sensors fixed with clamps to calculate the alignment reading of the wheels. The clamps, which have rim locking pins (fingers) for fixing the wheel rim, are critical to the accuracy of the machine (ATS ELGI).

Feature Function
Image Sensors Calculate the alignment reading of the wheels
Clamps Fix the sensors to the wheel rim
Rim Locking Pins Ensure a secure attachment of the clamps
Horizontal Beam Aligns the measuring sensors
Vertical Beam Used for individual sensor alignment
Computer with GUI Displays the alignment data and allows for adjustments

Typically, there are 2 or 4 measuring sensors used for alignment, with the left-side sensor measuring the vehicle’s left side wheels and the right-side sensor measuring the vehicle’s right side wheels. The measuring sensors are fixed on one horizontal beam or individually with a vertical beam and are leveled with the left and right sides.

3D imaging alignment machines are an example of how modern technology is being applied in the automotive industry to increase accuracy and efficiency. They represent a notable advancement over traditional wheel alignment methods, offering significant benefits in terms of precision, time efficiency, and versatility in application.

Future of 3D Imaging Alignment

As we move into the future, the advancements in 3D imaging technology are projected to bring in substantial changes in the automotive industry, particularly in the area of wheel alignment. The potential innovations and challenges associated with these advancements are discussed below.

Potential Innovations

The integration of 3D printing in the automotive industry offers immense opportunities, including the production of complex geometries and intricate designs, reduction in lead times and inventory costs, and a significant reduction in the environmental impact of manufacturing (LinkedIn).

This technology exhibits transformative potential in the collision industry, particularly in manufacturing smaller short-run plastic components, repair kits for headlights, sensor cradles for bumper covers, and high-value clips. Additionally, 3D printing can address the need for smaller, discontinued, or out-of-stock parts that would otherwise require high-volume production through traditional methods (LinkedIn).

With the rapid adoption of 3D printing for end-use parts by Original Equipment Manufacturers (OEMs), we can expect innovative developments in 3D imaging alignment that can revolutionize traditional manufacturing processes. These developments can yield substantial benefits in terms of enhanced performance, reduced weight, improved fuel efficiency, and reduced lead times and inventory costs (LinkedIn).

Challenges and Solutions

Despite the promising potential of 3D imaging alignment, there are challenges that need to be addressed. The use of poor-quality 3D printed auto parts poses safety concerns, incompatibility issues, and warranty and insurance implications. Collision repair shops may face reputation damage, increased labor costs, and legal liabilities, while insurance companies may experience higher claims and settlement costs and reputational damage. Policyholders may face safety risks, increased costs, and inconveniences.

To mitigate these concerns and challenges, a few measures can be taken. The establishment of a regulatory body and development of quality standards and validation protocols for 3D printed auto parts are recommended. Collaboration between OEMs and 3D printing providers can ensure the production of high-quality, reliable parts. Education and training initiatives can equip technicians with the necessary skills to work with this modern technology. Moreover, prohibiting the use of non-endorsed 3D printed parts in collision repair can ensure the safety and reliability of the vehicles.

As we move forward, the potential of 3D imaging alignment in wheel alignment and overall automotive manufacturing is immense. By addressing the associated challenges, we can harness the full potential of this technology to revolutionize the automotive industry.
