Understanding Car Wheels
The wheels of a car play a crucial role in the overall performance and safety of the vehicle. They’re more than just round objects that make your car move; they’re complex systems with multiple components. This section delves into the basic components of a car wheel and highlights the significance of bolt patterns.
Basic Components of a Car Wheel
A car wheel is typically composed of several key components:
-
Rim: This is the outer edge of the wheel that holds the tire in place. It’s vital to the wheel’s structure and contributes to the stability and handling of the vehicle.
-
Hub: The hub is the center part of the wheel where it attaches to the car’s axle. It houses the lug bolts that secure the wheel to the vehicle.
-
Spokes: These are the structures that extend from the hub to the rim, providing support and strength to the wheel.
-
Lug Holes: These holes are located on the wheel hub and are where the lug bolts are inserted to attach the wheel to the vehicle.
-
Centerbore: This is the hole in the center of the wheel that fits over the hub of the vehicle. It’s important for aligning the wheel properly on the car.
The complexity of these components emphasizes the importance of understanding their functions and how they relate to one another.
Significance of Bolt Patterns
A bolt pattern, or lug pattern, is a crucial element of a car wheel. This pattern determines the number of lug holes in the wheel and the distance between them. It’s key to ensure that the bolt pattern of the wheel matches that of the car’s hub, allowing the wheel to fit securely onto the vehicle.
An incorrect bolt pattern can lead to a host of issues, including poor handling, increased tire wear, and even damage to the vehicle. The bolt pattern is typically expressed as a number (indicating the number of lug holes) followed by another number (representing the diameter of the circle formed by the lug holes).
For example, a 5×100 bolt pattern indicates that there are 5 lug holes, and the diameter of the circle formed by these holes is 100mm. To learn more about bolt patterns, their significance, and how to read them, head over to the section about reading bolt patterns.
Understanding the importance of bolt patterns and their role in the function of car wheels is crucial for ensuring the safe and efficient operation of your vehicle. As part of comprehensive wheel and tire guides, this knowledge will be invaluable for car enthusiasts and vehicle owners alike.
Bolt Patterns: An In-Depth Look
A crucial factor to consider when changing wheels on a vehicle or purchasing aftermarket wheels is the bolt pattern. Understanding bolt patterns is essential for proper wheel fitment and safety.

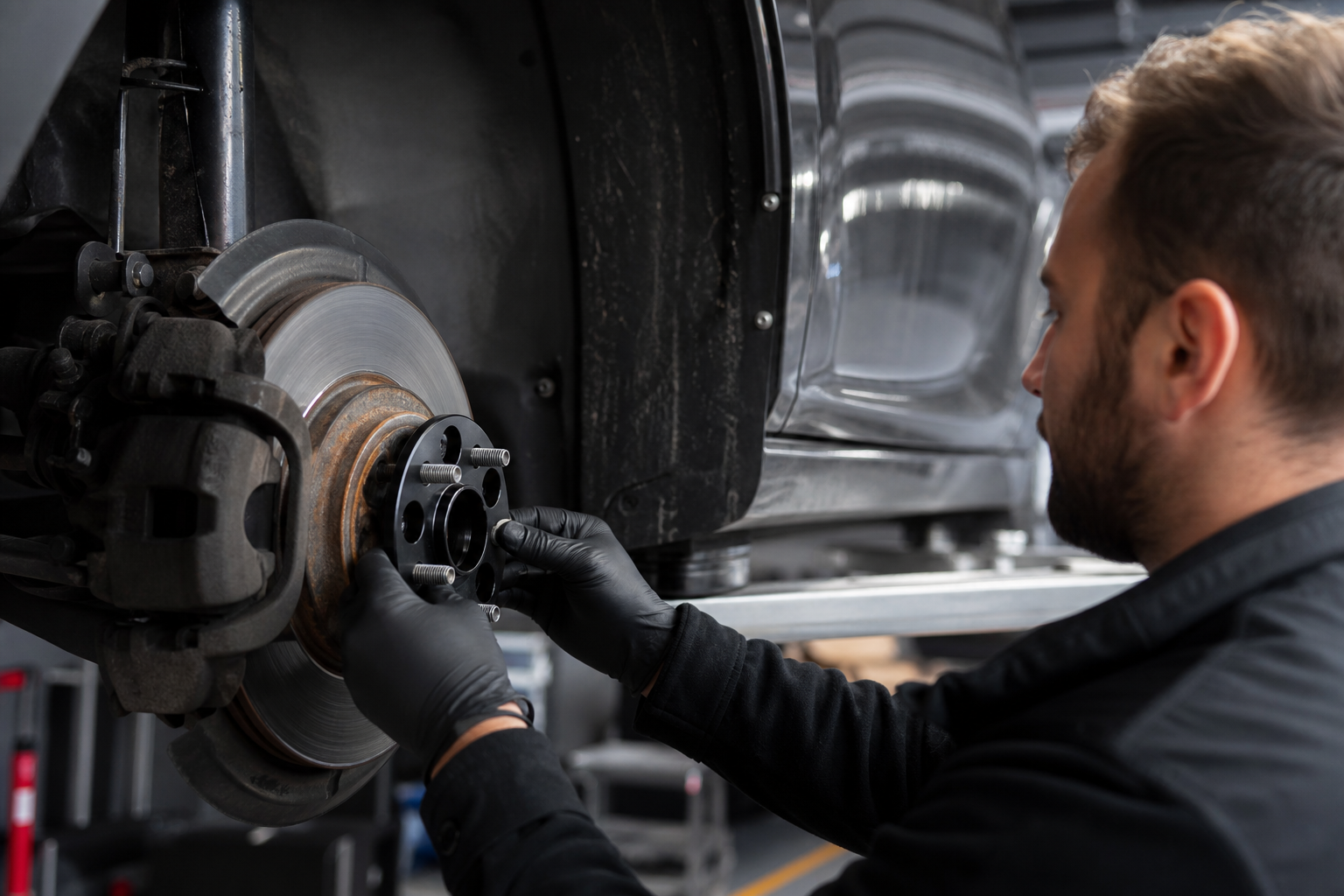

What is a Bolt Pattern?
A bolt pattern, also known as lug pattern or pitch circle diameter (PCD), is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4-, 5-, 6-, or 8-lug holes. A 4-lug pattern means that the wheel has four bolt holes opposite each other in a circular pattern.
The bolt pattern is represented by two numbers, for example, 5×114.3. The first number (5) indicates the number of bolt holes or lugs, while the second number (114.3) denotes the diameter (in millimeters) of the circle that the lugs create.
Some wheels have a dual bolt pattern. This means the wheels have two sets of bolt holes, enabling them to fit vehicles with different bolt patterns.
Importance of Correct Bolt Patterns
Having the correct bolt pattern is essential for securely fastening the wheel to the vehicle. Using wheels with an incorrect bolt pattern can result in the wheel not sitting properly on the hub, causing the wheel to come loose or fall off while driving, posing a severe safety hazard. Moreover, an incorrect bolt pattern can cause issues with vehicle handling and the fitment of the brake assembly.
The bolt pattern also affects the offset, which is the distance from the wheel’s mounting surface to the centerline of the wheel. An incorrect offset can lead to issues with steering, suspension components, and the clearance between the wheel and the vehicle’s body.
Therefore, always ensure to check the bolt pattern when purchasing new wheels for your vehicle or considering using existing wheels on a different vehicle. Always refer to the vehicle’s owner’s manual or consult with a wheel specialist to get accurate information about the correct bolt pattern for your vehicle.
Reading Bolt Patterns
When it comes to understanding the bolt pattern of your vehicle’s wheels, there are two key components: understanding bolt pattern numbers and learning how to measure bolt patterns.
Understanding Bolt Pattern Numbers
Bolt pattern numbers refer to the number of bolt holes and the diameter of the circle that the bolts form. They are typically represented as two numbers separated by an “x”. The first number indicates the number of lug holes the wheel has, while the second number denotes the diameter (in inches or millimeters) of the circle formed by the lug holes.
For example, a bolt pattern expressed as “5×114.3” means that the wheel has five lug holes, and the diameter of the imaginary circle formed by these holes is 114.3 millimeters. Understanding these numbers is crucial when purchasing new wheels or tires to ensure proper fitment.
| Example | Interpretation |
|---|---|
| 5×114.3 | Wheel has 5 lug holes and the diameter of the circle they form is 114.3mm |
| 4×100 | Wheel has 4 lug holes and the diameter of the circle they form is 100mm |
| 6×139.7 | Wheel has 6 lug holes and the diameter of the circle they form is 139.7mm |
How to Measure Bolt Patterns
Measuring the bolt pattern of your vehicle’s wheels can be done using a few simple steps:
- Count the number of lug holes on the wheel. This will give you the first number of the bolt pattern.
- If the wheel has an even number of lug holes, measure the distance from the center of one hole to the center of the hole directly across from it to determine the diameter.
- If the wheel has an odd number of lug holes, measure the distance from the center of one hole to the center of the hole two places away.
Note: Measurements should be taken in millimeters for accuracy.
For more information on bolt patterns, including the implications of incorrect bolt patterns and how to match bolt patterns to your vehicle, refer to our extensive glossary section or additional articles on dual bolt pattern and lug holes.
Common Bolt Patterns
In the world of wheels and tires, bolt patterns are a vital aspect of compatibility between the vehicle and the wheels. Bolt patterns vary by the number of lug holes, with the most common patterns being 4-lug, 5-lug, and 6-lug. Understanding these patterns will help you select the correct wheels for your vehicle.
4-Lug Bolt Patterns
A 4-lug bolt pattern is typically found on smaller-sized vehicles, such as compact cars and hatchbacks. The pattern can be described using two numbers, with the first indicating the number of lug holes and the second representing the distance (in millimeters) between opposite lug holes.
For example, a 4×100 bolt pattern means there are four lug holes and the distance between opposite holes is 100 millimeters.
| Common 4-Lug Bolt Patterns |
|---|
| 4×100 |
| 4×108 |
| 4×114.3 |
5-Lug Bolt Patterns
The 5-lug bolt pattern is prevalent in many medium to large-sized vehicles, such as sedans, SUVs, and light trucks. This pattern is denoted similarly to the 4-lug pattern, with the first number indicating the number of lug holes and the second number representing the diameter of the circle that passes through the center of the lug holes.
For example, a 5×120 bolt pattern means there are five lug holes, and the diameter of the imaginary circle passing through the centers of these holes is 120 millimeters.
| Common 5-Lug Bolt Patterns |
|---|
| 5×100 |
| 5×108 |
| 5×112 |
| 5×114.3 |
| 5×120 |
| 5×130 |
6-Lug Bolt Patterns
The 6-lug bolt pattern is common on larger vehicles, such as full-size trucks and SUVs. This pattern follows the same naming convention as the other patterns, with the first number representing the number of lug holes and the second number indicating the diameter of the circle that passes through the center of the lug holes.
For example, a 6×139.7 bolt pattern means there are six lug holes, and the diameter of the circle through these holes is 139.7 millimeters.
| Common 6-Lug Bolt Patterns |
|---|
| 6×114.3 |
| 6×127 |
| 6×135 |
| 6×139.7 |
Understanding these common bolt patterns can help you make an informed decision when selecting the right wheels for your vehicle. Always ensure that your chosen wheels have a bolt pattern that matches your vehicle to ensure a safe and secure fit. For more information on bolt patterns and other wheel and tire terminology, please visit our glossary.
Bolt Patterns and Vehicle Compatibility
Navigating the complexities of bolt patterns requires a clear understanding of their correlation with vehicle compatibility. This section will explore how to match bolt patterns to your vehicle and the potential implications of incorrect bolt patterns.
Matching Bolt Patterns to Your Vehicle
When it comes to vehicle compatibility, matching the correct bolt pattern is of utmost importance. Bolt patterns are specific to every vehicle make, model, and year. Therefore, it is crucial to ensure that the vehicle’s bolt pattern matches the wheel’s bolt pattern for proper fitment.
You can find this information in your vehicle’s manual or on the manufacturer’s website. Alternatively, there are online resources and tools, like WheelWiz, which can provide this information based on your vehicle specifications.
It’s important to note that some wheels come with a dual bolt pattern, meaning they have two sets of hole patterns. This allows for a broader range of vehicle compatibility. However, it is still crucial to verify that one of the bolt patterns matches your vehicle’s specifications.
Implications of Incorrect Bolt Patterns
Selecting a wheel with an incorrect bolt pattern can pose significant safety risks and can also damage your vehicle. If the bolt pattern does not match, the wheel may not sit properly on the vehicle’s hub, leading to an unstable and unsafe driving experience.
Here are some potential issues that can arise from using a wheel with an incorrect bolt pattern:
-
Uneven Tire Wear: Incorrect bolt patterns can lead to uneven distribution of weight, which can cause the tires to wear unevenly. This can compromise the handling and performance of the vehicle.
-
Damage to the Wheel and Hub: If the wheel is not properly aligned with the hub, it can cause damage to both the wheel and the hub.
-
Safety Risks: An incorrect bolt pattern can lead to wheel detachment while driving, which is a significant safety hazard.
It’s important to remember that bolt pattern is not the only factor to consider for wheel compatibility. Other factors such as wheel offset, centerbore, and diameter also play a crucial role. For a comprehensive understanding of these terms, refer to our glossary.
In conclusion, understanding and matching the correct bolt pattern to your vehicle is essential for safe and efficient driving. Always ensure that the bolt pattern, as well as other wheel and tire specifications, are suitable for your vehicle before making a purchase.
Other Essential Wheel and Tire Guides
Aside from understanding the bolt pattern, there are other wheel and tire elements that vehicle owners should consider. These include centerbores, Tire Pressure Monitoring Systems (TPMS), and the cleaning and storage of alloy wheels.
Understanding Centerbores
The centerbore is the large hole in the middle of the wheel that centers the wheel properly on the hub of a vehicle. This hole is machined to exactly match the hub so the wheels are precisely positioned as the lug hardware is torqued down.
Centerbore compatibility is critical to ensuring that the wheel fits the car properly. Incompatibility can lead to vibration, wheel and tire damage, and even accidents. If the wheel’s centerbore is larger than the car’s hub, a hub-centric ring can be used for a proper fit. For more information on this, check out our detailed guide on centerbore.
Tire Pressure Monitoring Systems (TPMS)
A Tire Pressure Monitoring System (TPMS) is an automated system that monitors the air pressure in a vehicle’s tires. When air pressure in one or more tires drops 25 percent or more below the correct pressure, a warning indicator alerts the driver.
TPMS is an essential safety feature that can prevent tire failure, improve fuel efficiency, and enhance vehicle handling. It’s important to ensure that your TPMS is functioning correctly and to check your tire pressure regularly. Visit our TPMS guide for more details on this system.
Cleaning and Storage Tips for Alloy Wheels
Proper cleaning and storage of alloy wheels can extend their lifespan and maintain their appearance. When cleaning alloy wheels, avoid using harsh chemicals or abrasive tools that could damage the wheel’s finish.
For storage, it’s best to keep alloy wheels in a cool, dry place away from direct sunlight. If possible, store them in a tire bag or cover to protect them from dust and moisture. For more comprehensive tips on cleaning and storage, refer to our articles on cleaning alloy wheels and wheel storage.
By understanding these wheel and tire elements, vehicle owners can ensure the longevity and performance of their wheels and tires. They are also critical considerations when purchasing new wheels, along with bolt patterns, wheel diameter, and offset. So, the next time you’re in the market for new wheels, remember to consider not just the style and price, but also these important technical aspects.
